Your Meticulous is driven by the Dial: rotate it, press it, hold it. This guide covers every screen and setting, in the exact words the machine uses.
Sent here by support? Your link jumps straight to the answer, highlighted.
Start here
The Dial is the primary control — rotate it left or right, press it, hold it. Two buttons sit beside it: the Context Button and the Tare Button.
Browse options, scroll Profiles, adjust a value.
Select an option. Confirm a value.
Highlighting a Profile: starts the shot. Menu items marked HOLD also need a sustained press.
During a shot: aborts it and returns to Profile selection. In an editor: backs out without saving.
Press: zeroes the scale and opens the weight overlay. Press & hold: expands it full-screen. Double-press: closes it.
Plug in the machine and press the Power Button — on the base — in until you hear a loud click. The boot animation plays, your Profiles load, and you land on Home.
No response when you turn the Dial? The Dial can't wake a machine that's off — it's the Power Button that starts it.
Scroll direction is a preference, set separately for browsing and typing:
Context Menu›config›Scroll Directions
Orientation
Everything starts at Home. Each branch below is tappable and jumps to its chapter.
Each item is a screen; the dashed row is instant actions. Machine-driven screens (heating, notifications) appear on their own.
Chapter 1
Your profiles, side by side. Turn to browse, hold to brew.

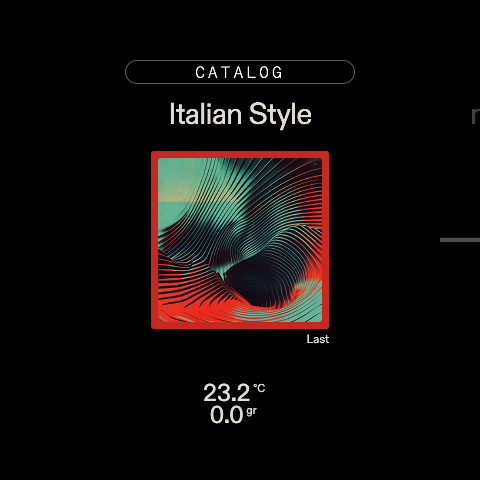

Rotate the Dial to move between Profiles. The one you brewed most recently is tagged Last. To brew the selected Profile, press and hold the Dial — the on-screen hint reads Hold to start. The Catalog pill at the top and the new card open the profile catalog.
The strip along the bottom shows the Heated Chamber temperature and the scale weight.

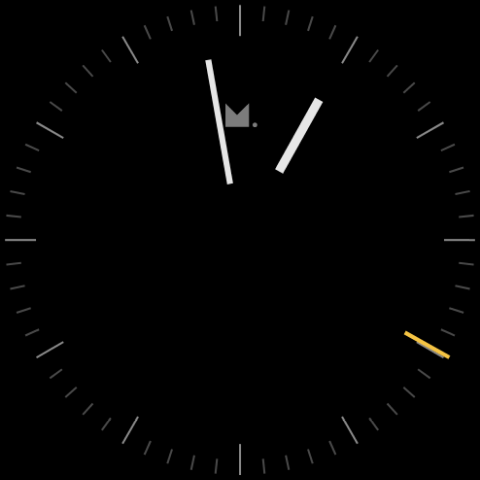

After ten minutes alone, the screen becomes a clock. Touch the Dial and you're back where you were. Styles: Analog Clock, Digital Clock, Digital Cat Clock, DVD Style.
config›Advanced Settings›Select Idle Screen
The clock drifts and dims slightly over time. That's burn-in protection, not a fault.
The machine is running the 9-Bar demo profile. If you purchased the Advanced Software & Services package, your Unlock Code is in your Welcome Email — select unlock all features and enter it. Entering the code (with WiFi connected) lets the machine download the advanced software and brew beyond the demo profile. Can't find the email? Write to us.
Chapter 2
Select a Profile, press and hold the Dial. The machine takes it from there.
Holding the Dial moves the Motorized Piston to the bottom so you can add water. Fill the Heated Chamber to the max line every time — right to it, not past it; overfilling can splash. Making back-to-back shots? A kettle of boiling water cuts the heating time.
While heating, the screen shows live temperature against the target and an estimated wait. You can pick how the shot begins:
| Push to brew | The default. When ready, the screen reads PUSH TO START and waits for your press. |
| Auto brew | The shot starts the moment heating completes. |
| Brew now | Hold to start immediately, without waiting for full temperature. |
No water? Fill the reservoir, seat it, then Tap to retry.
There's no scheduled wake-up, by design: the machine heats fresh water per shot rather than keeping a boiler hot all day. The kettle tip above is the fast path.

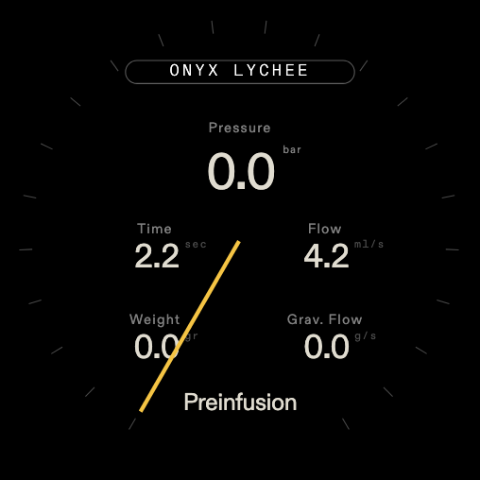

The yellow needle tracks pressure in bar. Around it: Time, Flow (ml/s), Weight (g), and Grav. Flow (g/s). The label at the bottom names the profile stage that's running — Preinfusion, retracting, and so on.
The scale tares to zero with your cup on it once the piston retracts, and the shot ends by weight — so don't touch the cup or Drip Tray until the machine chimes. And leave the portafilter locked in until you've purged: there's still around 100 ml of hot water above the puck.
Double-press the Dial — the shot aborts and you're back at Profile selection. If pressure is high with barely any espresso coming out, abort, then raise the piston to release the pressure: Context Menu›raise. The Context Menu also offers Skip this step to jump to the Profile's next stage.

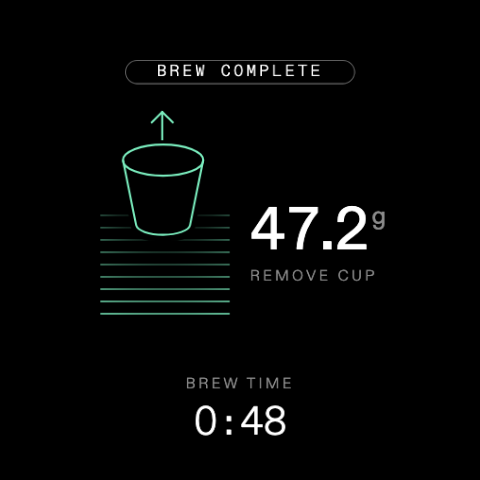

The screen turns green: final weight, REMOVE CUP, and total BREW TIME. Take your espresso, put a purge cup in its place, and press the Dial to purge the remaining water (with Purge: Automatic in Brew Settings, removing the cup triggers it).

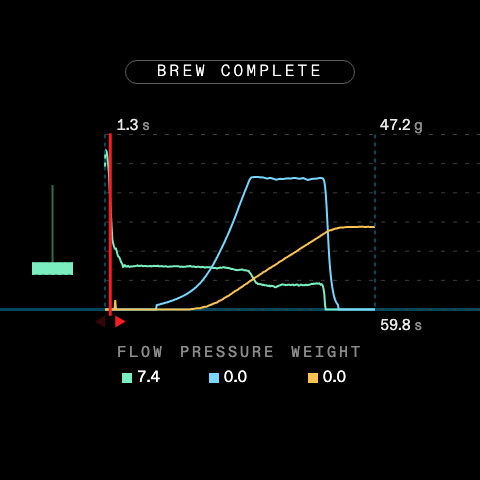

Rotate the Dial to see the shot graph — pressure, flow, and weight traced across the extraction; keep rotating to scrub through it. It's there later too, via Last shot in the Context Menu.
Chapter 3
Shot recipes. Take them from the Catalog, or shape them yourself.

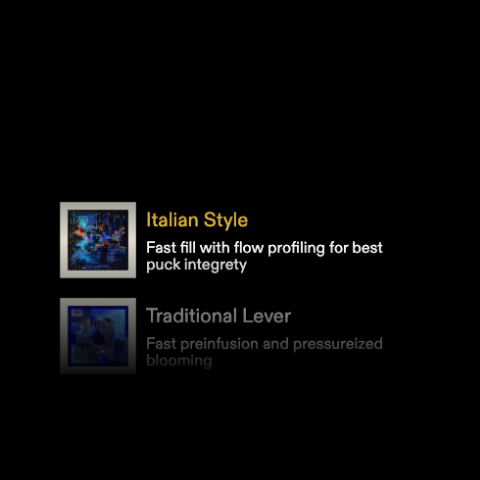

From Home, choose new. Meticulous recipes come first — Simele (formerly Italian Style), Traditional Lever, Slow Preinfusion, Turbo — followed by Community Profile entries shared by other owners. Choosing one copies it to your shelf; your edits never touch the original.
The Catalog needs an internet connection. If new doesn't respond, check WiFi.
Context Menu›Edit profile

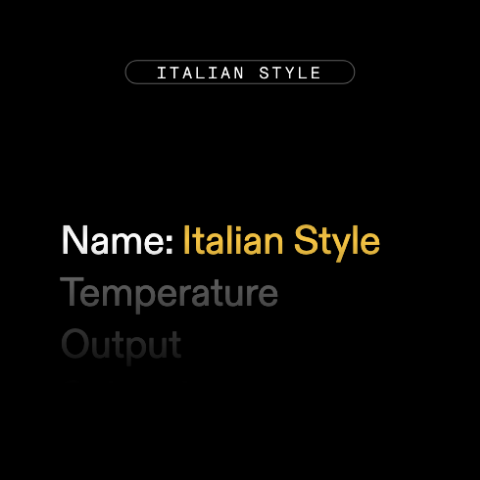

The list shows name, temperature, output, Select image — then the profile's own stages, under their own names (Simele has Pressure Limit and Constant Flow). Rotate to adjust a value; press to open its full-screen editor. Adjustable ranges: temperature 0–99 °C (the machine displays Celsius), output 0–100 g, pressure 0–13 bar, flow 0–12 ml/s, stage time up to 180 s.
At the end: brew without saving tries your edits once, save keeps them, discard doesn't.

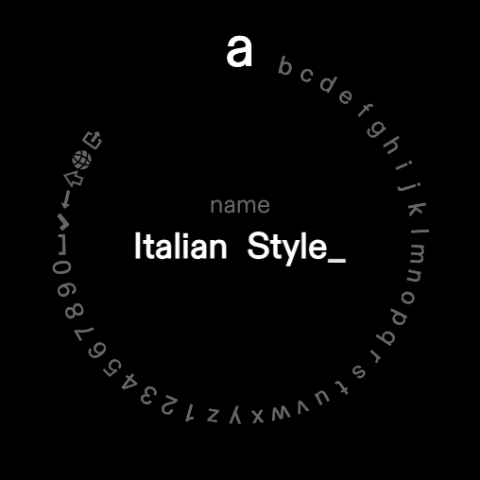

Letters ring the screen. Rotate to bring one to the top slot, press to type it. The wheel also carries space, backspace, caps, accents and symbols, Ok to finish and Abort to cancel.
With the profile selected: Context Menu›Delete profile — hold to confirm. Catalog profiles can always be re-added.
Chapter 4
The weight readout slides over any screen, driven by the Tare Button.
Press the Tare Button: the scale zeroes and the weight overlay appears — handy for weighing beans while the machine heats. Press and hold to expand it full-screen; double-press to close it. It also closes itself when a shot starts. Scale not connected in red means the scale isn't plugged in — check the cable to the front port.
Context Menu›config›calibrate scale
Only calibrate if our support team has asked you to. Calibrating without a proper reference weight can put the scale further off, and that's difficult to correct.
Press twice at any point to leave without changing anything.
Chapter 5
Press the Context Button on any screen. The options adapt to what you're doing.
| Edit profile | The profile editor. Shown when a profile is selected. |
| Last shot | The shot graph of that profile's last brew. |
| Delete profile | Hold to delete. |
| Sleep | Straight to the idle clock. |
| Raise | Raises the piston — do this before removing the portafilter. |
| Purge | Moves the piston to the bottom position, purging any water remaining in the cylinder. |
| Brew Settings | Machine-wide brew behavior — below. |
| WiFi | WiFi. |
| Config | Settings. |
| Report an issue | Sends us diagnostics — Getting help. |
| Skip this step / Abort Brew | Replace the list mid-brew. |
Context Menu›Brew Settings
| Start | Automatic will start the shot as soon as the brew temperature is reached. On button press waits for you to start the shot. |
| Purge | Auto-purge will purge within a few seconds of removing the cup, so make sure a second cup is in place to receive the purge liquid. You can also select to begin the purge on Dial press. |
| Shot volume | Target volume for the piston's travel, shown in ml. |
| Pre/Post-heat | How long the boiler stays hot around a shot — up to 10 minutes. |
Chapter 6

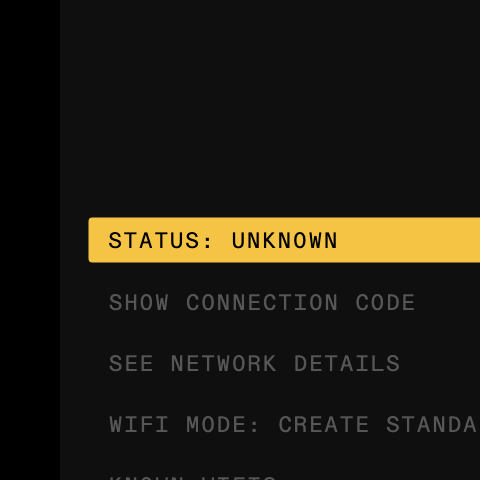

Profiles, updates, and the app all travel over WiFi. Three ways to connect — and what the QR code actually does.
Networks you've joined are remembered under Known Wifis.
The comfortable way to enter a long password.
Works with no home WiFi at all. New machines start in this mode.

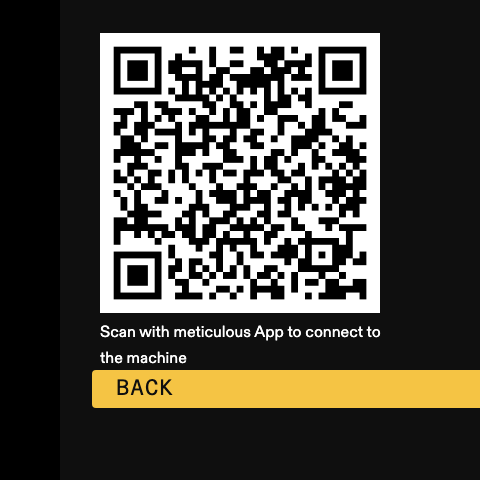

wifi›Show connection code
One job: connecting your phone to the machine. What's inside the code depends on the machine's mode:
· On its own hotspot — the code carries the hotspot's name and password. Scanning joins your phone to the machine's network; the regular camera app understands it.
· On your home WiFi — the code carries the machine's address on your network. Scan it with the Meticulous app and it pairs instantly, skipping the search.
Available whenever the machine's networking is up — hotspot or home WiFi. The code stays on screen for 30 seconds; the hotspot name and password are also spelled out under See network details.
Context Menu›wifi›See network details

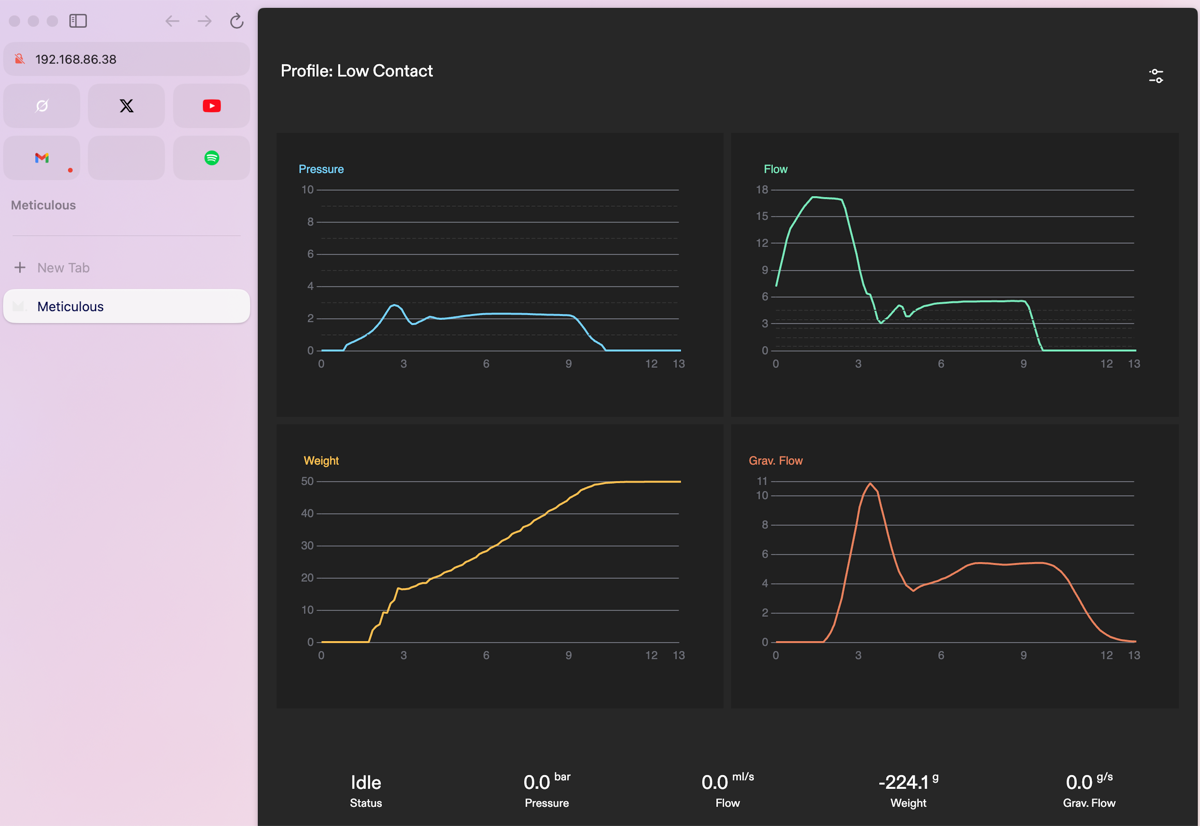

The IP row is the machine's address on your network. You'll need it for the real-time sensor data page, for connecting tools like Bean Conqueror, and sometimes when working with support. Type it into a browser's address bar on a device that's on the same WiFi as the machine.
The address usually looks like 192.168.x.x and can change when your router restarts — if a saved address stops working, look it up again. On its own hotspot, the machine has no home-network address; the IP shown there belongs to the hotspot.
Context Menu›wifi›See network details
The machine's network panel — every row is read-only:
| NETWORK | The WiFi network the machine is connected to. |
| HOSTNAME | The machine's name on your network. |
| AP NAME · AP PASSWORD | The name and password of the machine's own hotspot, used when Wifi mode is set to Create standalone wifi — see hotspot mode. Rather than typing the password, you can scan the connection code with your phone's camera and it joins the hotspot for you. |
| IP | The machine's address on your network. |
| MAC | The hardware network address — for router allow-lists. |
| HEALTH | Connection health, in the same words as the Status: line. |
| GATEWAY · DNS · INTERNET | OK or FAILED for each leg of the connection — shows where a connection is breaking. |
| LAST ERROR | The most recent problem, in plain words. |
| RECOVERY | What Repair WiFi last did: No repair needed, Repaired, or Repair failed. |
App not connecting to your Meticulous? It's one of a handful of causes. Work through them in this order — it first establishes whether the problem is the machine's connection or your phone, then fixes each:
What the Status: line can say:
| CONNECTED | On your WiFi and healthy. |
| HOTSPOT ACTIVE | Broadcasting its own network — hotspot mode. |
| NO INTERNET | On the WiFi, but the network can't reach the internet. |
| DNS ISSUE · ROUTER ISSUE · NO IP ADDRESS | The connection breaks at that specific leg — run Repair WiFi, and check network details for the full picture. |
| NOT CONNECTED | No network at all — connect. |
| Checking... | Testing the connection; give it a moment. |
Stuck at any point? Send a report — it includes the connection logs we need.
Chapter 7
Everything under Context Menu›config.
| Device Info | Serial, batch, software versions, and a scannable QR of the machine's identity. |
| Time & date | Timezone (automatic, or pick country and city), clock, calendar. In the editors: long-press to confirm, double-press to abort. |
| Sounds | Interface sounds on or off — toggles on one press. |
| Calibrate scale | Scale calibration. |
| Scroll Directions | Reverse the dial's direction for browsing and/or typing. |
| Advanced Settings | Below. |
config›Advanced Settings
| Update channel | stable or beta — see updates. |
| Select Idle Screen | The idle clock style. Previews immediately. |
| Telemetry Service | Anonymous diagnostics that help us improve the machines. |
| Share debug motor data | Extra detail for support when working a motor issue with you. |
| SSH · ROOT PASSWORD · Display Alignment Screen | Service tools. Heads up: items here toggle on a single press. |
| Factory reset | Below. |

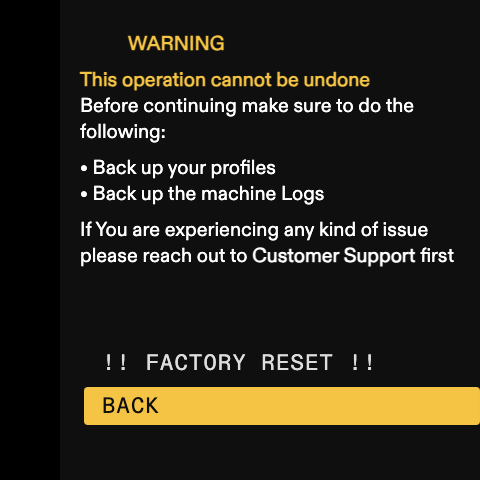

The machine's own warning: back up your profiles and machine logs first, and “If you are experiencing any kind of issue please reach out to Customer Support first.” Most problems have a fix that erases nothing.
The reset only proceeds after you type the machine's exact serial number, and the cursor starts on Back — an accidental press does nothing.
Chapter 8
There's no update button. The machine keeps itself current over WiFi.
When an update is available, the machine downloads and installs it on its own. Progress shows at the top of the Context Menu — Downloading Update: …%, Installing Update: …%, then Update Complete. The new software takes effect the next time the machine restarts. Otherwise the banner reads OS up to date.
Current version, two ways: scroll to the bottom of the Context Menu — it's in a small bordered chip after the last item, e.g. 2026M1191 — or config›Device Info, the image_version row.
config›Advanced Settings›Update channel
stable is the recommended track. beta gets features earlier, with occasional rough edges. Switching applies immediately.
Chapter 9
Meticulous logs help us quickly understand the source of an issue.
The values we ask for most, and where the machine keeps them:
| You need | On the machine |
|---|---|
| IP address | wifi › See network details › IP |
| Serial number | config › Device Info › serial |
| Software version | Bottom of the Context Menu — or config › Device Info › image_version |
| Hotspot name & password | wifi › See network details › AP NAME / AP PASSWORD — or scan the connection code instead |
| Network name · MAC address | wifi › See network details |
| WiFi status | wifi › the Status: line at the top |
| Update channel | config › Advanced Settings › Update channel |
| Ticket number | Report an issue — shown after it sends |
Every path starts at the Context Menu — press the Context Button on any screen.
Context Menu›Report an issue
One press sends us the machine's diagnostic data and gives you a ticket number. Mention it when you write in and we can see what the machine saw. The mobile app has the same button and attaches even more detail — the machine itself recommends reporting from the app when you can.
Context Menu›config›Device Info
Everything we might ask for, on one screen. The rows carry technical names, word for word as the machine shows them — here's what each one means:
| Serial number | The serial row — for warranty claims, and typed to confirm a factory reset. |
| Software version | The image_version row — when we ask “what version are you on?”, read this one. It looks like 2026M1191. Quicker still: press the Context Button and scroll past the last menu item — the version sits in a small bordered chip at the bottom of the Context Menu. |
| Update channel | The image_build_channel row — the channel the current software came from. |
| Internal version field | The software_version row often reads UNSET — that's normal; image_version above is the one that matters. |
| Machine name | The name and hostname rows — what the app and your network see. |
| Made when & how | The color, batch_number and build_date rows. |
| Hardware readings | The firmware and mainVoltage rows — firmware revision, and the mains voltage the machine measures. |
| Component builds | The backend, dial and firmware rows at the end — these pinpoint your exact build for support. |
Show device info QR — the first entry on the screen — shows a code you can scan with your phone: serial, batch, and color in one shot, ready to paste into an email. It stays up for 30 seconds.
Not on this screen, or anywhere: the machine doesn't display a scale battery level or a lifetime shot counter — Last shot in the Context Menu is the last shot's graph, not a running total.
This guide covers the screen; physical care lives on the Maintenance and Repairs page — cleaning, descaling, and replacement parts.
Inside Report an issue, Contact info shows a QR to our contact page — or go to meticuloushome.com/pages/contact.
Chapter 10
What they mean, and what to do.
| On screen | Meaning |
|---|---|
| No water | Reservoir empty or unseated. Always make sure the reservoir is full before starting a Profile or pre-heating the machine. Once filled and reseated, Tap to retry. |
| Scale not connected | No scale in reach — weight features pause; everything else works. Seeing this with the cable plugged in? Reverse the cable and re-insert it fully. |
| Motor temperature too high | The motor has been under high strain for a while; a few minutes of cool-down clears it. If you see it often — or under regular load — contact support. |
| Waiting for the backend to come online. | Normal for a few moments after power-on. If it stays, power-cycle the machine. |
| All sensors offline. Please restart | Power the machine off and on. If it comes back, send a report. |
If the interface sounds stopped, check they're simply not switched off: Context Menu›config›sounds — one press toggles sounds: ENABLED.
Rotate to read to the end, keep rotating to move between the response options, press to answer.
